Epoxy Resin for Electronics: Potting, Coating & Protection

Introduction

In the world of modern electronics, reliability and protection are paramount. Devices are expected to operate in increasingly harsh environments—high humidity, mechanical shock, temperature extremes, and chemical exposure. Whether you’re manufacturing LED drivers, sensors, PCBs, or industrial control systems, epoxy resin plays a critical role in safeguarding components through potting, conformal coating, and encapsulation.

This article outlines why epoxy resin is ideal for electronics protection, explores its application methods, and helps you select the right formulation for long-term performance.

1. Why Epoxy Resin is Ideal for Electronics Protection

Epoxy systems offer a range of key properties for electronic assemblies:

• Electrical insulation: Prevents arcing and signal leakage
• Moisture and chemical resistance: Protects from corrosion and oxidation
• Thermal stability: Withstands heat from components and environments
• Mechanical support: Damps vibrations and reinforces delicate components
• Adhesion: Bonds strongly to plastics, metals, ceramics, and PCBs

Epoxy is particularly valued in applications where durability and dimensional stability are more important than reworkability.

2. Key Applications of Epoxy in Electronics

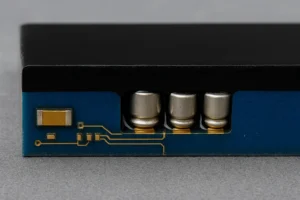

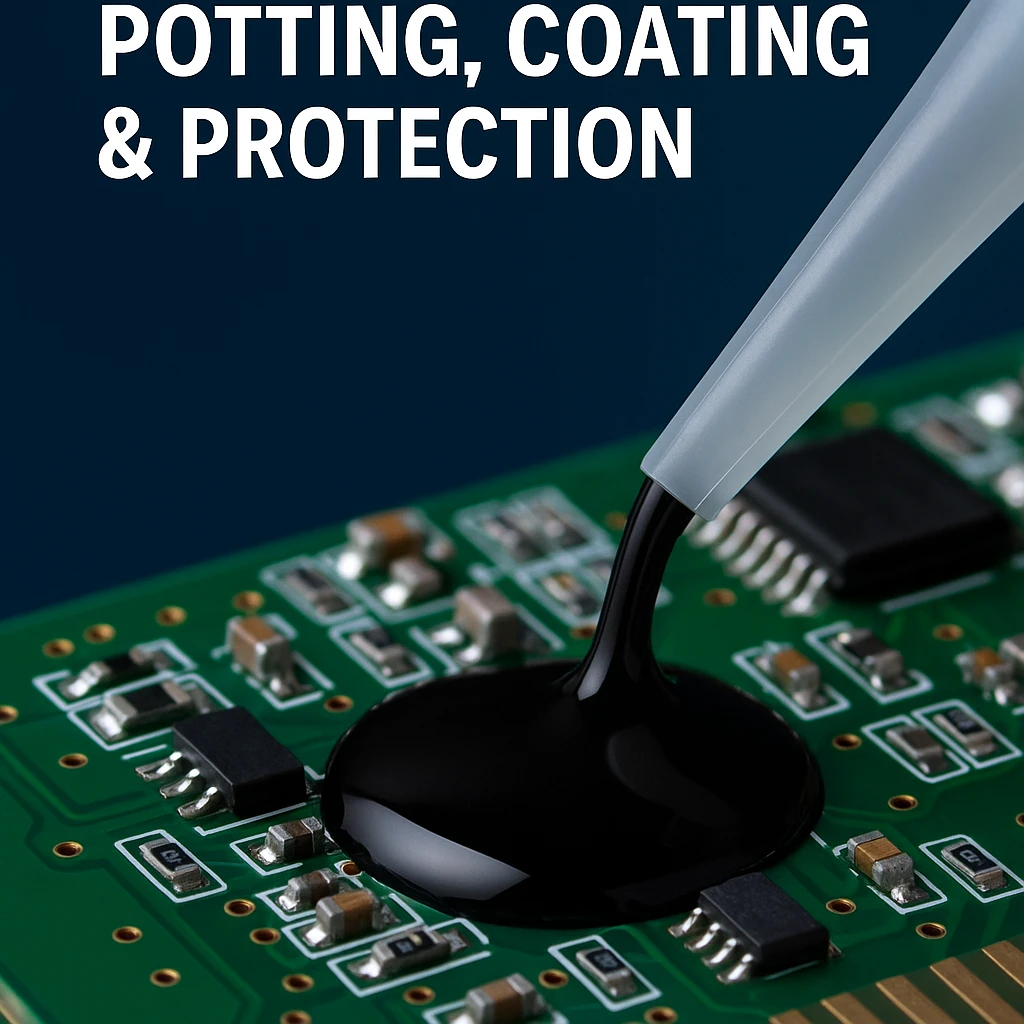

a. Potting & Encapsulation

• Used to fill entire cavities around components
• Prevents tampering and increases shock resistance
•
• Common in power supplies, automotive sensors, coils, and transformers

b. Conformal Coating

• Thin protective layer over PCBs and exposed circuitry
• Applied via brushing, dipping, or spraying
• Maintains accessibility while providing insulation and barrier protection

c. Adhesive Bonding

• Structural bonding of modules and thermal components
• Provides heat conduction when filled with aluminum oxide or boron nitride

3. Selecting the Right Epoxy Resin for Electronics

Suggested RWE Epoxy Systems:

• RWE‑720E: Fast cure at room temp, excellent flow for PCB potting
• RWE‑HT260: High Tg, thermally stable system for power electronics
• RWE‑CRYSTAL: Clear conformal coating, UV-stable for LED applications

4. Best Practices for Application

• Clean and pre-dry all substrates to remove moisture
• Mix accurately and degas before dispensing (vacuum or static mixer)
• Use controlled dispensing systems to avoid air pockets
• For potting: encapsulate in layers if depth >10 mm to avoid exothermic cracking
• Post-cure when possible to achieve full cross-linking and property stability

Conclusion

Whether protecting sensors in an engine bay or sealing delicate PCBs in IoT devices, epoxy resin for electronics ensures unmatched resistance to environmental, thermal, and mechanical stress. With the right formulation, epoxy offers decades of performance in even the most demanding use cases.
