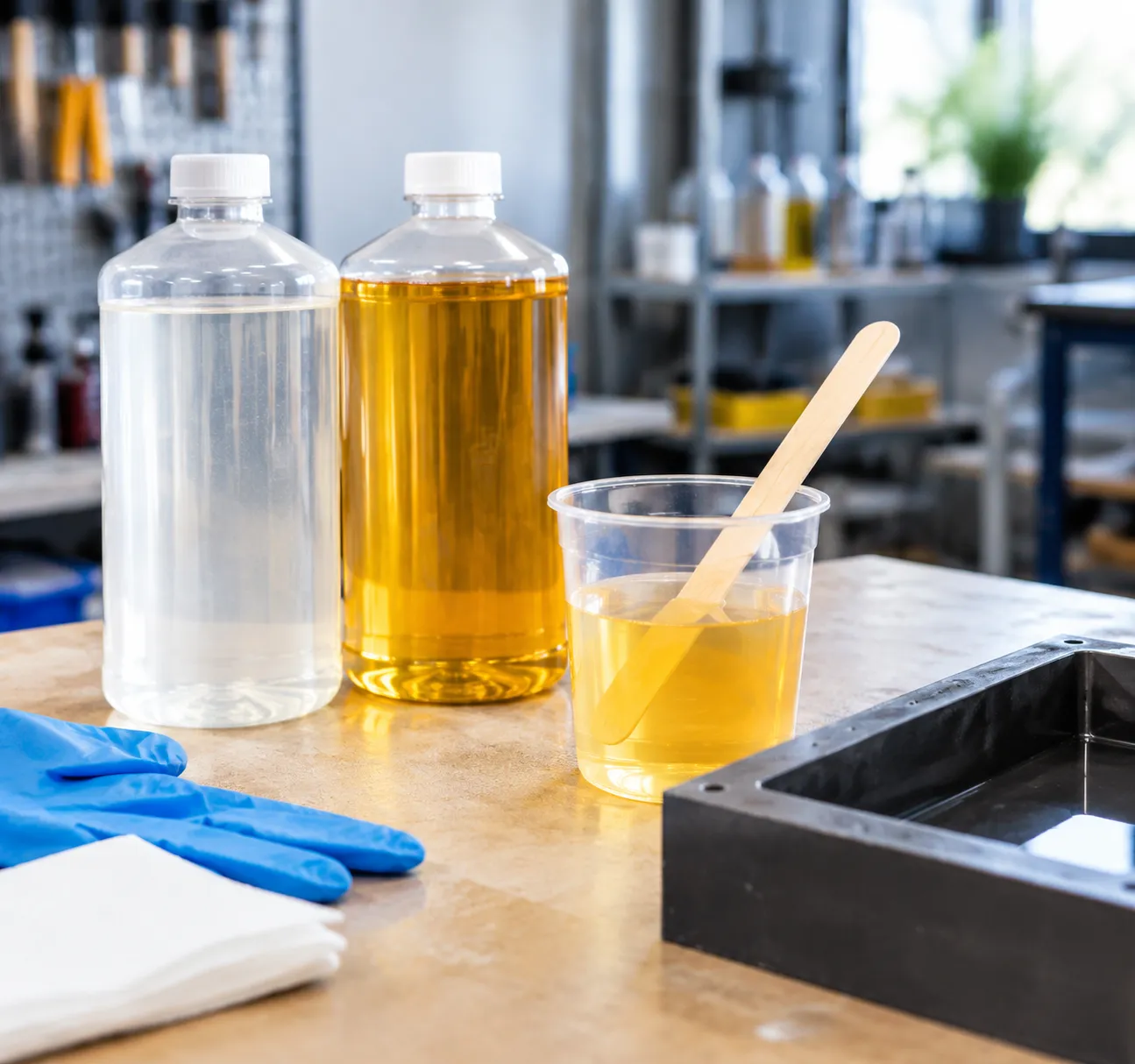

High Temperature Tooling Epoxy Guide for Stable Tools

Quick Answer

High temperature tooling epoxy is an advanced heat-resistant resin system engineered specifically for fabricating dimensionally stable molds, master patterns, and composite tooling capable of enduring high-temperature cure cycles. Formulated to withstand severe thermal stress, this specialized composite tooling epoxy prevents warping, micro-cracking, and dimensional distortion during repeated exposure to elevated temperatures.

• • High Thermal Resistance: Delivers high Glass Transition Temperatures (Tg) exceeding 150°C to 200°C+ after proper post-curing.
  • Minimal Shrinkage: Ensures precise tolerance retention and high dimensional accuracy for complex geometries.
  • Thermal Shock Durability: Resists degradation, delamination, and surface dulling throughout aggressive heat-ramp cycles.
  • Robust Surface Layer: Formulated for high hardness, superior polishability, and long tool life in autoclave and oven cure environments.

What Buyers Need to Know First

Sourcing a high temperature tooling epoxy isn’t just about selecting a resin rated for extreme heat. Before committing to a composite tooling system, you must evaluate how the material behaves under real-world processing stresses, continuous thermal exposure, and repeated production runs.

Key factors to evaluate before purchasing:

• • Continuous Exposure vs. Peak Heat: Determine whether your mold faces sustained elevated temperatures or brief thermal spikes during composite curing.
  • Glass Transition Temperature (Tg): Your chosen high temperature epoxy resin must achieve a Tg that exceeds your maximum cure cycle to prevent part print-through, surface degradation, or mold warping.
  • Thermal Cycling Resilience: Quality heat resistant mold resin withstands hundreds of expansion and contraction cycles without micro-cracking or losing vacuum integrity.
  • Post-Cure Capabilities: High-temperature performance depends heavily on accurate ramp rates and post-curing schedules. Confirm your facility can meet the required thermal profile.
  • Factory-Direct Consistency: Sourcing through a trusted industrial epoxy resin supplier or OEM epoxy resin manufacturer ensures batch-to-batch repeatability and custom formulation options engineered for your exact tooling surface resin needs.

Define the Tooling Temperature Requirement

When selecting a high temperature tooling epoxy, you must look beyond standard room-temperature cure specs. Molds experience intense thermal stress during autoclave or oven cure cycles. Choosing the wrong heat threshold leads to mold distortion, vacuum loss, or premature surface breakdown.

We recommend defining your thermal requirements using three core metrics:

• • Maximum Cure Temperature: The peak heat your composite tooling epoxy will face during part consolidation.
  • Thermal Dwell Time: How long the tool holds peak temperature during production runs.
  • Exotherm Peak: The internal heat generated by the resin system during thick section laminating.

Tooling Surface Layer vs Structural Layer

Building a reliable high-temperature mold requires matching the right high temperature mold resin to the specific section of your tooling construction. A single resin formulation rarely satisfies both micro-surface detail and bulk structural support.

Applying a dedicated tooling surface resin backed by a dimensionally stable structural composite ensures your tool maintains vacuum integrity and tight tolerances across repeated heat cycles.

Dimensional Stability and Shrinkage

When we build high-precision molds, dimensional stability is non-negotiable. Standard resins tend to shrink as they cure, pulling away from the master model and ruining tight tolerances. A premium high temperature tooling epoxy solves this by maintaining ultra-low shrinkage rates during both room-temperature ambient cure and elevated-temperature post-cure.

Key factors we focus on to guarantee a dimensionally stable epoxy:

• • Minimal Cure Shrinkage: Keeps fine surface detail intact and prevents part distortion.
  • Low Thermal Expansion: Matches the thermal expansion of carbon fiber or metal inserts, reducing internal stresses.
  • Zero Warpage: Ensures large-scale composite tooling epoxy structures stay flat and true under load.

Tg and Repeated Heat Cycles

Glass Transition Temperature (Tg) is the critical benchmark for any heat resistant mold resin. If your tool operates near its Tg without proper thermal limits, the polymer network softens, leading to premature tool failure or surface print-through during thermal cycling mold epoxy operations.

We engineer our high temperature epoxy resin formulas to handle continuous thermal cycling so your production molds deliver repeatable precision, batch after batch.

Cure and Post-Cure for Tooling

Achieving maximum thermal performance from high temperature tooling epoxy requires a disciplined, step-by-step cure and post-cure cycle. A room-temperature initial cure only provides green strength. To unlock full heat resistance and structural stability, we always take the mold through a controlled elevated-temperature post-cure.

• • Controlled Ramp Rates: Keep heating and cooling ramps at 1°C to 2°C per minute to prevent thermal stress, warpage, or cracking.
  • Temperature Dwells: Hold specific intermediate temperature plateaus to ensure uniform heat penetration throughout thick laminates.
  • Peak Soak Time: Maintain peak post-cure temperature for 2 to 4 hours to achieve maximum cross-linking density in your high temperature epoxy resin.

How to Validate a High-Temperature Epoxy Tool

Before introducing a new heat resistant mold resin tool to production, we validate its thermal and mechanical integrity through specific checks:

Rigorous validation ensures your composite tooling epoxy withstands demanding oven and autoclave cycles without deforming or failing under vacuum.

What Information Should You Send to RW ATELIER?

To help our technical team select or formulate the ideal high temperature tooling epoxy tailored to your production line, sharing your core processing and thermal parameters upfront ensures a fast, accurate system match.

Key Data Points to Provide:

• • Thermal Limits: Your required continuous service temperature, peak heat spikes, target Tg (glass transition temperature), and cure oven ramp capabilities.
  • Application Method: Processing type (wet lay-up, vacuum infusion, or RTM) and your required working time/pot life.
  • Tool Construction: Details on whether you need a dedicated tooling surface resin, a low-shrinkage backing layer, or a complete composite tooling epoxy system.
  • Reinforcement Material: Composite fiber types (carbon fiber, fiberglass) and master plug/pattern materials.
  • Supply Scope: Sample batch needs, custom packaging requirements, or OEM/ODM specifications for direct factory shipment.

Tooling Project Checklist

Providing these specifications allows our R&D team to deliver a precise custom epoxy formulation or heat resistant mold resin system optimized for your exact shop environment and mold life targets.

How Can RW ATELIER Support This Project?

At RW ATELIER, we operate as a direct OEM epoxy resin manufacturer and industrial epoxy resin supplier for composite engineering projects worldwide. We build high temperature tooling epoxy systems tailored to your exact thermal, structural, and processing targets.

• • Custom Epoxy Formulation: We fine-tune viscosity, gel time, glass transition temperature (Tg), and heat resistance to match your mold setup and manufacturing requirements.
  • Factory-Direct Supply: Skip the middleman for lower material costs, direct technical support, and batch-to-batch quality control.
  • Thermal Cycle Guidance: We provide direct processing recommendations—including precise post-cure ramp rates—to ensure long-term dimensional stability under heat.
  • Scalable Manufacturing: From small prototype runs to volume bulk shipments, we scale production to keep your manufacturing timeline on schedule.
