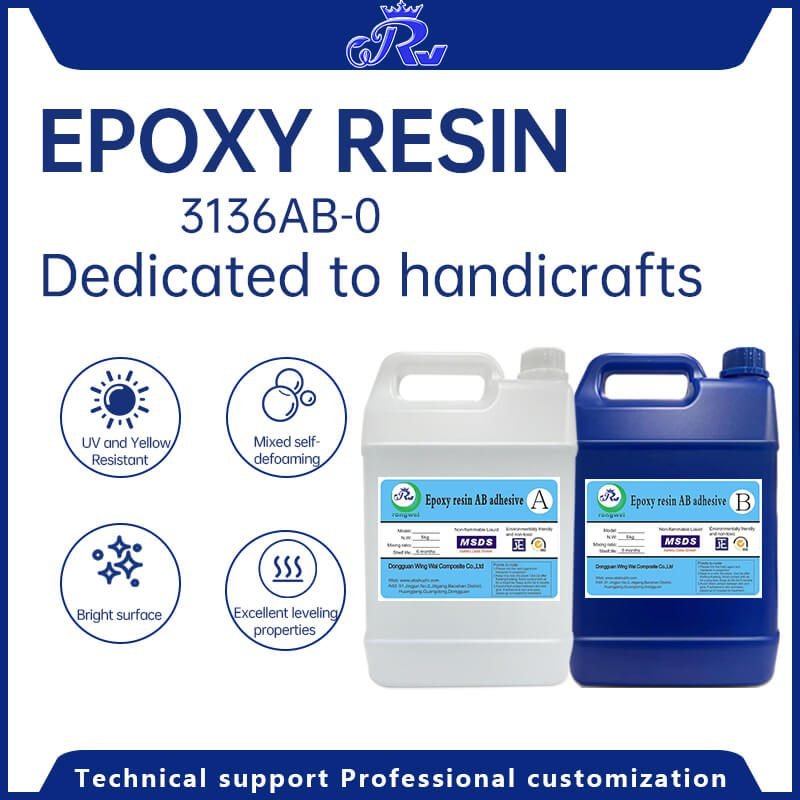

RW Epoxy Resin 3136AB Is Used For Fluid Painting, Hairpin Jewelry, Photo Frames, Lighting Curved Surface Drops
【FREE SAMPLE】We can provide epoxy resin for free, ONLY bear shipping cost.
【CRYSTAL CLEAR】clear and transparent epoxy resin AB glue(5:1,4:1, 3:1, 2:1, 1:1 ) is innovative coatings,castings and moulding products.
【FAST CURING】1:1 epoxy resin: about 12 hours, 2:1 epoxy resin: about 24 hours,3:1 epoxy resin: about 48 hours.
STORAGE& PACKING
–Storage Method : Please store in a dry place.
–Shelf Life : 12 months at 8-28°C.
— Packing: 100ml, 200ml, 500ml, 1000ml, 2kg, 5kg, 25kg, 50kg,200kg, 1000kg, Also accept customized package.
DESCRIPTION
RW Epoxy Resin 316AB
Click to download : Epoxy Resin 316AB TDS .PDF
Features Epoxy 316AB is an epoxy resin arc adhesive that cures at room and low temperatures, semi-transparent, low arc, naturally defoamed, easy to work with, cures at room temperature or can be heat cured.
Application Areas Epoxy resin 316AB is specially used in fluid painting, hairpin jewelry, photo frame, lighting arc surface drip glue and mold infusion and other electronic parts of insulation, moisture-proof potting, confidentiality masking and so on.
Main performance indicators
| Epoxy resin 316A | Curing agent 316B | |
| Complexion | Colorless transparent liquid | Colorless transparent liquid |
Density (g/m³) | 1.15+1.05 | 0.96+0.03 |
| Viscosity (mPa·s) | 1500-3000 cps | 100cps |
| Brookfield DV2TRV Testing Method | 25℃ | |
Mixing ratio (by weight) | 100 ： 33 | |
(By volume) | 3 : 1 | |
After mixing
Epoxy Resin + Curing Agent | |
| State | Fluid |
| Viscosity | 3000±50mPa.S |
| Brookfield DV2TRV Testing Method | 25℃ |
| Operating time (100 grams, 25°C) | 40±3 min |
Brookfield DV2TRV testing method, with a maximum viscosity of 2500 mPa·s. | |
| Usage | 280-350 g/m2 (depending on substrate) |
Curing Properties
| Initial cure | About 14 hours at room temperature |
| Final cure | 16 hours at room temperature |
| Service temperature range | 10℃-70℃ |
Method of use
Working Environment
Please keep the glue container clean, and mix the A and B components strictly according to the weight ratio, weigh accurately, and stir well clockwise along the inner wall of the container, and then leave it to stand for 3-5 minutes before use.
Precautionary Note
According to the operating time and the amount of glue mixing to avoid waste. When the temperature is lower than 15 ℃, please preheat the A glue to 30 ℃ before glue mixing, easy to operate (low temperature A glue will thicken); after use must be sealed barrel lid, to avoid moisture absorption caused by the product scrap. When the relative humidity is greater than 85%, the surface of the cured material is easy to absorb the moisture in the air, forming a layer of white mist, so when the relative humidity is greater than 85%, it is not suitable for ambient curing, and it is recommended to use heating curing.
Test results
| Hardness | shoreD | 82 |
| Bending Strength | Kg/mm2 | 37 |
| Heat Distortion Temperature | ℃ | 130 |
| Water Absorption Rate | % | <0.15 |
| Compressive Strengths | Kg/mm2 | 9.4 |
Preservation
| Fear of freezing | Yes | |
| Moisture Sensitivity | Epoxy Resin | Curing Agent |
| No | Sensitiveness | |
| Recommended Storage Temperature | 15°C – 25°C (not lower than 10°C and not higher than 50°C) | |
| Validity Period | 6 months in original packaging | |
| Packages | Epoxy Resin | Curing Agent |
| 5kg/Pot | 5kg/Pot | |
