RW Epoxy Resin 315AB-R Is Used For Stickers, Adhesive Labels, Nameplates, Flat Crystal Drip Gel, Crystal Jewelry Drip Gel, Hardware Jewelry
【FREE SAMPLE】We can provide epoxy resin for free, ONLY bear shipping cost.
【CRYSTAL CLEAR】clear and transparent epoxy resin AB glue(5:1,4:1, 3:1, 2:1, 1:1 ) is innovative coatings,castings and moulding products.
【FAST CURING】1:1 epoxy resin: about 12 hours, 2:1 epoxy resin: about 24 hours,3:1 epoxy resin: about 48 hours.
STORAGE& PACKING
–Storage Method : Please store in a dry place.
–Shelf Life : 12 months at 8-28°C.
— Packing: 100ml, 200ml, 500ml, 1000ml, 2kg, 5kg, 25kg, 50kg,200kg, 1000kg, Also accept customized package.
DESCRIPTION

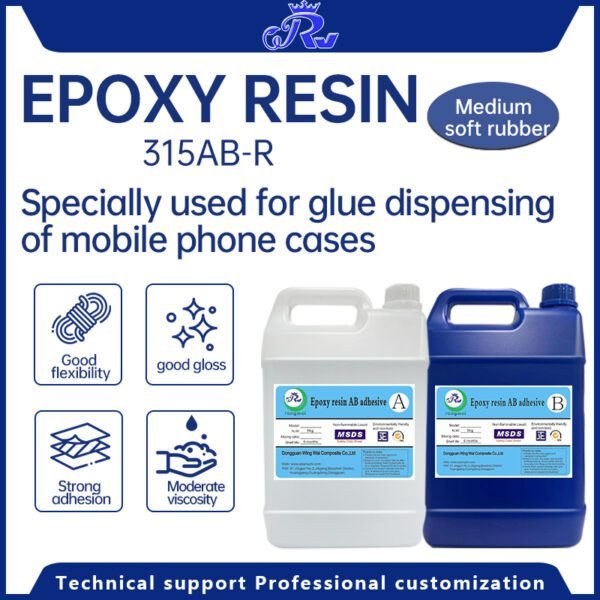

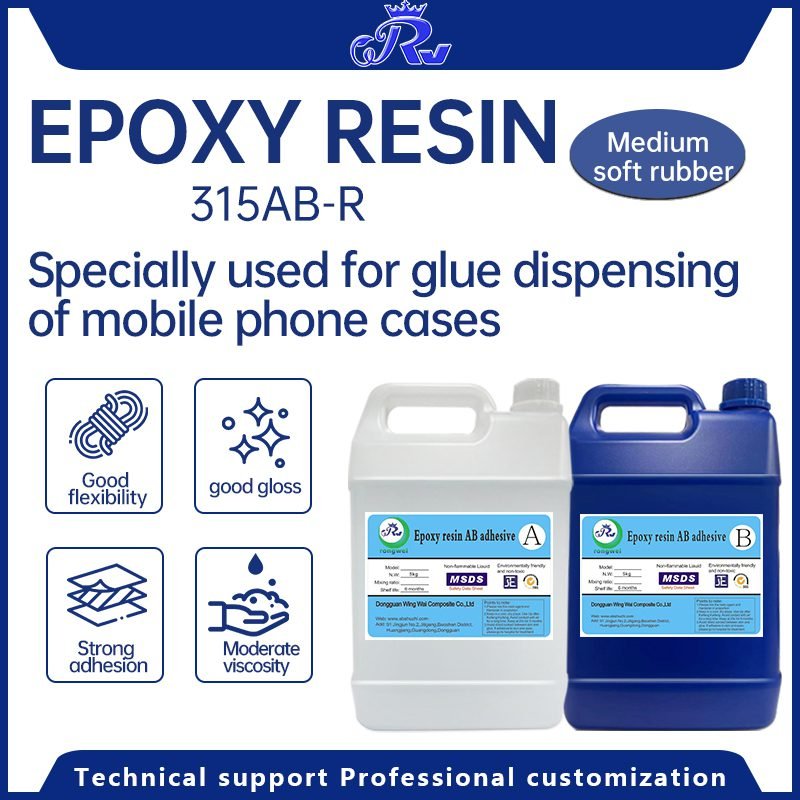

RW Epoxy Resin 315AB-R
Click to download : Epoxy Resin 315AB-R TDS .PDF
Features Epoxy resin 315AB-R is a two-component resin environmentally friendly soft glue, moderate viscosity, high transparency, yellowing resistance, good toughness, natural defoaming, strong adhesion, surface gloss, crystal clear, room temperature or heating curing softness, good surface.
Application Areas Epoxy Resin 315AB-R is specially used for the surface encapsulation of stickers, self-adhesive labels, tags, flat crystal droplets, crystal jewelry droplets, or the transparent potting of electronic parts and LED strip light potting.
Main performance indicators
| Epoxy resin 315A-R | Curing agent 315B-R | |
| Complexion | Colorless and transparent | Colorless and transparent |
Density (g/m³) | 1.15+0.05 | 1.02+0.03 |
| Viscosity (mPa·s) | 150-400 cps | 250MAXCPS |
| Brookfield DV2TRV Testing Method | 25℃ | |
Mixing ratio (by weight) | 100 ：33 | |
(By volume) | 5 : 1 | |
After mixing
Epoxy Resin + Curing Agent | |
| State | Fluid |
| Viscosity | 400±50mPa.S |
| Brookfield DV2TRV Testing Method | 25℃ |
| Operating time (100 grams, 25°C) | 45±3 min |
Brookfield DV2TRV testing method, with a maximum viscosity of 2500 mPa·s. | |
| Usage | 280-350 g/m2 (depending on substrate) |
Curing Properties
| Initial cure | About 12 hours at room temperature |
| Final cure | 15 hours at room temperature |
| Service temperature range | 10℃-70℃ |
Method of use
Working Environment
Please keep the glue container clean, and mix the A and B components strictly according to the weight ratio, weigh accurately, and stir well clockwise along the inner wall of the container, and then leave it to stand for 3-5 minutes before use.
Precautionary Note
According to the operating time and the amount of glue mixing to avoid waste. When the temperature is lower than 15 ℃, please preheat the A glue to 30 ℃ before glue mixing, easy to operate (low temperature A glue will thicken); after use must be sealed barrel lid, to avoid moisture absorption caused by the product scrap. When the relative humidity is greater than 85%, the surface of the cured material is easy to absorb the moisture in the air, forming a layer of white mist, so when the relative humidity is greater than 85%, it is not suitable for ambient curing, and it is recommended to use heating curing.
Test results
| Hardness | shoreD | 20 |
| Bending Strength | Kg/mm2 | 55 |
| Heat Distortion Temperature | ℃ | 100 |
| Water Absorption Rate | % | <0.15 |
| Compressive Strengths | Kg/mm2 | 3.4 |
Preservation
| Fear of freezing | Yes | |
| Moisture Sensitivity | Epoxy Resin | Curing Agent |
| No | Sensitiveness | |
| Recommended Storage Temperature | 15°C – 25°C (not lower than 10°C and not higher than 50°C) | |
| Validity Period | 12 months in original packaging | |
| Packages | Epoxy Resin | Curing Agent |
| 5kg/Pot | 5kg/Pot | |
