Stone Surface Epoxy Coating Guide for Construction Use
What Is stone surface epoxy coating Used for in Construction Epoxy Materials?
A stone surface epoxy coating is a high-performance polymer system specifically engineered to seal, protect, and reinforce natural and engineered stone substrates. In modern construction, it acts as both a protective barrier and a structural enhancer, preserving the natural beauty of materials like marble, granite, quartzite, terrazzo, and concrete while dramatically increasing their operational lifespan.
Main application scenarios
- Countertops & Slab Processing: Provides a glass-like finish, sealing micro-fissures and preventing stain absorption on kitchen islands, vanity tops, and commercial bar counters.

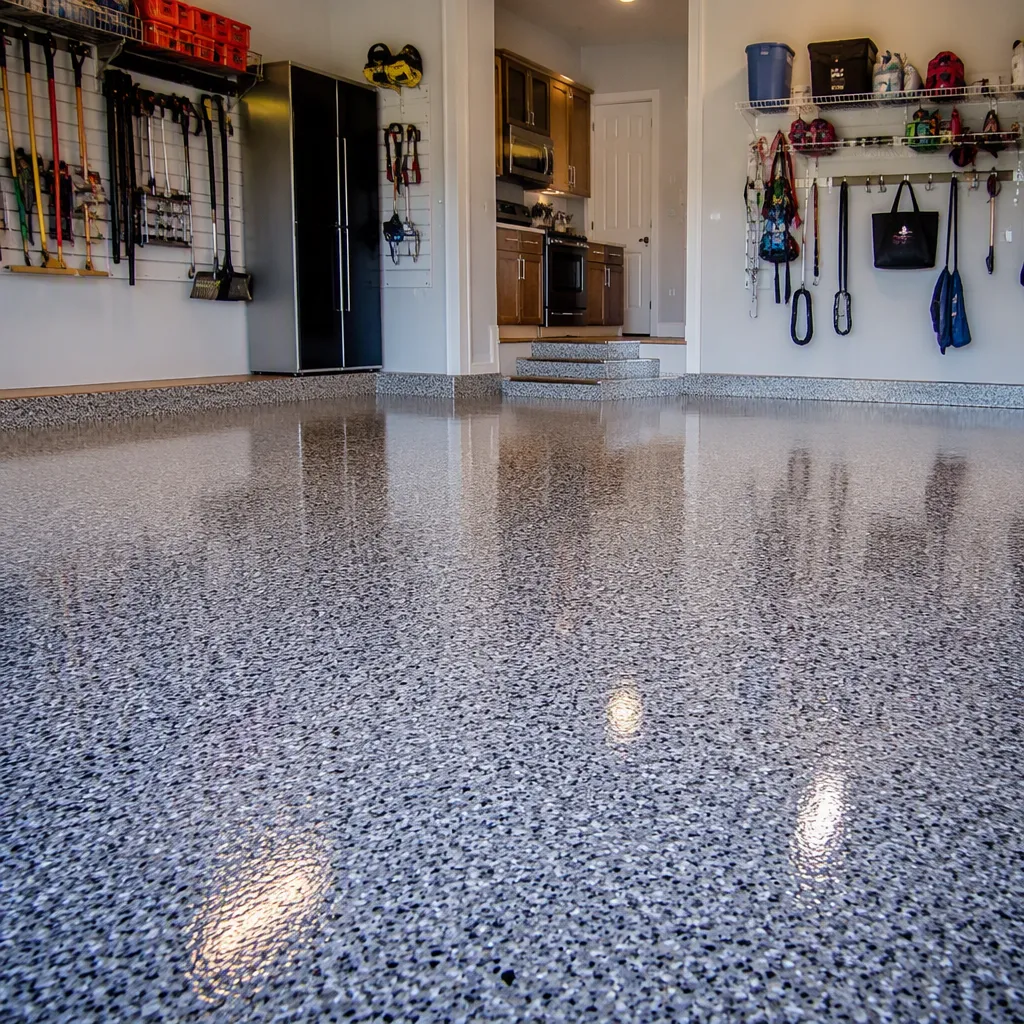

- Commercial & Residential Flooring: Delivers a seamless, high-gloss protective layer over terrazzo, polished concrete, and natural stone tiles subject to heavy foot traffic.
- Slab Reinforcement & Repair Epoxy: Functions as a deep-penetrating resin to fill voids, cracks, and fissures in raw stone slabs before final polishing.
- Exterior Architectural Features: Seals stone cladding, pillars, and decorative entryways against moisture penetration and environmental degradation.
Required material properties
| Property | Benefit for Stone Applications |
|---|---|
| Low Viscosity & High Flowability | Deeply penetrates fine stone pores and micro-cracks for maximum structural anchorage. |
| UV Resistance & Optical Clarity | Maintains crystal-clear transparency without yellowing over prolonged light exposure. |
| Exceptional Adhesive Strength | Prevents delamination, chipping, or peeling under thermal expansion and mechanical strain. |
| Chemical & Stain Resistance | Shields porous stone from oils, household acids, moisture, and harsh cleaning agents. |
Common user expectations
- Flawless Aesthetic Finish: Contractors and end-users demand a glass-like finish free of cloudiness, haze, or pinholes.
- Reliable Curing Dynamics: Consistent curing times are essential to prevent curing failure, sticky residue, or prolonged downtime on job sites.
- Easy Bubble Release: Formulation must allow trapped air to escape rapidly during application without requiring excessive heat.
- Certified Quality & Safety: Global buyers expect full regulatory compliance, verified by SDS/MSDS documentation and rigorous ISO 9001 quality control standards.
Performance Requirements for Construction Epoxy Materials
High-grade construction epoxy materials must deliver long-lasting protection and visual appeal under heavy structural demands. When engineered as a stone surface epoxy coating, our formulations satisfy strict industrial standards to guarantee maximum bond strength and surface stability.
Clarity, Gloss, and Appearance
To enhance natural marble, granite, or decorative concrete, the epoxy layer must offer crystal-clear transparency and a permanent wet-look shine.
- Optical Depth: High transparency preserves the natural color and grain of stone without cloudiness.
- Mirror Finish: Delivers a sleek, reflective surface that elevates premium interior and exterior installations.
- Yellowing Resistance: Built-in UV inhibitors prevent discoloration under sunlight and artificial lighting.
Adhesion and Durability
A premium stone surface epoxy coating penetrates deeply into porous stone and concrete substrates, creating an unbreakable mechanical bond.
| Performance Feature | Key Requirement | Application Advantage |
|---|---|---|
| Substrate Bonding | High tensile pull-off strength | Eliminates peeling and edge lift |
| Impact Strength | High flexural flexibility | Resists cracking from heavy impact |
| Abrasion Resistance | Low wear rate | Withstands heavy foot traffic and equipment |
| Micro-Crack Repair | Deep penetration | Functions as a high-strength repair epoxy |
Our controlled formulations reduce full curing failure risks, keeping surfaces structural intact for years.
Temperature, Moisture, and Chemical Resistance
Stone installations face continuous environmental exposure. Produced under strict ISO 9001 quality management, our epoxy coatings provide reliable resistance against everyday weathering and chemical contact.
- Moisture Waterproofing: Blocks water penetration to prevent efflorescence and freeze-thaw damage.
- Thermal Stability: Withstands ambient temperature shifts without softening, blistering, or warping.
- Chemical Protection: Defends against household cleaners, oils, greases, mild acids, and alkalis.
How to Select the Right stone surface epoxy coating
Choosing the ideal stone surface epoxy coating requires matching your project’s technical needs with the right formulation. We help you evaluate performance, mixing specs, and supply chain logistics to guarantee optimal results.
Recommended formula type
Not all stone projects call for the same resin chemistry. We customize formulations based on your specific application:
- High-Gloss Topcoats: Designed for granite and marble countertops requiring high scratch resistance and crystal-clear depth.
- Deep Pour Formulations: Formulated with low viscosity to fill thick slab voids, river tables, and deep cracks without trapped air.
- Fast-Cure Repair Epoxy: Perfect for quick structural bonding, edge repairing, and filling small pits on factory production lines.
- UV-Stabilized Coatings: Built with advanced HALS inhibitors to prevent yellowing on outdoor stone installations.
Mixing ratio and curing conditions
Achieving a complete chemical cure depends on strict ratio adherence and ambient controls to prevent curing failure.
| Parameter | Standard 1:1 System | High-Performance 2:1 System |
|---|---|---|
| Mix Ratio (by Volume) | 1:1 | 2:1 |
| Pot Life (at 25°C) | 30–45 minutes | 45–60 minutes |
| Tack-Free Time | 4–6 hours | 8–12 hours |
| Full Cure Time | 24 hours | 48–72 hours |
| Optimal Temp Range | 20°C–28°C (68°F–82°F) | 20°C–28°C (68°F–82°F) |
Maintain ambient humidity levels below 70% during application to prevent surface blooming or soft spots.
Packaging and bulk order options
We supply flexible batch sizes tailored for distributors, fabricators, and OEM partners:
- Standard Containers: 1-gallon kits, 5-gallon pails, and 200kg steel drums for large-scale industrial projects.
- Custom Packaging: Private-label options with tailored branding, specialized pour spouts, and compliant safety labeling.
- Quality Assurance: Every batch manufactured at our ISO 9001 certified Dongguan factory comes with full SDS/MSDS documentation and strict quality control.
- Sample Testing: We provide dedicated sample testing kits for onsite verification before you commit to bulk orders.
Common Problems and Solutions
Bubbles, yellowing, or soft curing
When applying a stone surface epoxy coating, issues like air entrapment, unwanted color shifts, or total curing failure can compromise the final finish. We tackle these issues with simple, practical controls:
- Trapped Bubbles: Caused by aggressive mixing or pouring too thick. Pass a heat gun or torch lightly across the poured resin to pop surface bubbles instantly, or run a vacuum degassing cycle prior to pouring.
- Yellowing: Caused by UV exposure or high exothermic heat during curing. We incorporate UV stabilizers and non-yellowing hardener technology to maintain crystal clarity.
- Soft Curing: Results from incorrect mixing ratios or working in cold conditions. Always measure parts precisely by weight or volume and ensure ambient temperatures stay above 20°C (68°F).
Surface defects and poor leveling
Surface imperfections lower visual appeal and can compromise protection. Understanding the root cause makes fixing them fast and effective.
| Issue | Root Cause | Solution |
|---|---|---|
| Fish Eyes & Craters | Oil, silicone, or dust contamination on the substrate. | Thoroughly clean and degrease the stone before applying resin. |
| Orange Peel Effect | Viscosity is too high or ambient temperature is too low. | Warm the resin parts before mixing to lower viscosity and promote self-leveling. |
| Scratches & Minor Voids | Post-curing mechanical damage or localized pinholes. | Use a targeted repair epoxy to fill and sand small flaws without re-coating the entire slab. |
How to test before mass production
Validating resin performance on a small scale saves time, materials, and money.
- Conduct Sample Testing: Perform a small-scale trial on your specific stone substrate to verify pot life, cure speed, self-leveling performance, and final hardness.
- Check Quality Certifications: Ensure your material comes from an ISO 9001 certified facility, ensuring batch-to-batch consistency and high quality standards.
- Review Technical Documents: Inspect the SDS/MSDS for handling guidelines, volatile organic compound (VOC) compliance, and safety requirements.
- Direct Factory Sourcing: Working directly with our Dongguan factory gives you access to custom formulations, full technical documentation, and pre-shipment quality control checks before you place bulk orders.
RW Atelier Custom Manufacturing Support
At RW Atelier, we deliver tailor-made chemical manufacturing directly from our ISO 9001 certified Dongguan factory. We build high-performance stone surface epoxy coating solutions designed around your exact product specifications and market demands.
Formula adjustment
We modify chemical formulations to meet your specific operational requirements:
- Viscosity & Flow: Fine-tune the formula for smooth self-leveling tops or thicker repair epoxy applications.
- Cure Speed: Adjust pot life and cure times for high-temp environments or fast-turnaround job sites.
- Property Enhancements: Boost UV resistance, impact strength, or thermal stability based on your target market.
Private label packaging
We provide full turn-key private labeling to get your brand market-ready fast:
- Custom Packaging: Flexible container options ranging from retail kits to 200kg drums and bulk IBC totes.
- Regulatory Compliance: Complete global documentation, including certified SDS/MSDS sheets for seamless international transit.
- Brand Styling: Custom labels, safety warnings, and branded user guides matched to your design standards.
Sample and bulk quotation
We simplify your supply chain with rapid testing and competitive direct-factory pricing:
- Sample Testing: Fast-tracked sample kits dispatched for immediate quality and performance testing in your facility.
- Tiered Pricing: Transparent bulk quotes that maximize your margins as volume grows.
- Consistent Batch Quality: Rigorous QA processes ensure your mass production matches your approved sample every time.
- What Is nameplate epoxy resin Used for in Dome Sticker Epoxy Resin?
We formulate specialized nameplate epoxy resin engineered specifically for 3D domed labels, emblems, and decal coatings. It cures into a crystal-clear, protective dome over printed graphics, enhancing color depth while shielding underlying labels from mechanical wear and environmental exposure.
- Main application scenarios
Our doming resin solutions serve critical labeling and branding needs across global industries:
- Brand Emblems & Badges: High-gloss 3D logo stickers for automotive parts, household appliances, and electronics.
- Industrial Nameplates: Durable equipment labels, machine serial plates, and outdoor control panels.
- Promotional Decals: Premium keychains, custom stickers, and branded merchandise.
- Surface Touch-Ups: targeted repair epoxy application for fixing surface defects on existing domed labels.
- Required material properties
Achieving a durable 3D lens effect requires exact resin chemistry:
- High Optical Transparency: Complete clarity that maximizes graphic contrast without color distortion.
- Controlled Surface Tension: Superior self-leveling properties that flow smoothly to decal edges without overflowing.
- UV & Weather Stability: Strong resistance to yellowing, cracking, and degradation under sunlight.
- Flexible Toughness: Built-in surface memory to resist scratches, scuffs, and impact.
- Common user expectations
Global manufacturers and print shops require reliable material performance to maintain high production yields:
- Fast Air Release: Self-degassing formulas that eliminate micro-bubbles during automatic or manual dispensing.
- Consistent Curing: Dependable hardness development that eliminates tacky surfaces and prevents curing failure.
- Substrate Compatibility: Superior adhesion to PVC, vinyl, polycarbonate, and aluminum substrates.
- Compliance & Safety: Rigorous quality control manufactured under ISO 9001 standards with full SDS/MSDS documentation available for smooth import compliance.
Performance Requirements for Dome Sticker Epoxy Resin
When crafting custom domed badges, labels, and nameplates, the resin coating defines the product’s lifespan and visual impact. We formulate our dome sticker epoxy resin to meet demanding industrial standards, ensuring every batch provides crystal-clear protection and high visual appeal.
Clarity, gloss, and appearance
A glass-like, high-build 3D dome is essential for making printed logos and graphics pop. The resin must flow evenly to the edge of the substrate without overflowing.
| Visual Feature | Technical Requirement | Product Benefit |
|---|---|---|
| Optical Clarity | Water-clear transparency | Maintains true print colors without haze |
| Surface Gloss | > 95 GU (Gloss Units) | Delivers a rich, reflective 3D finish |
| UV Resistance | Non-yellowing formulation | Prevents ambering under direct sunlight |
Adhesion and durability
A successful dome relies on permanent bonding and long-term surface resilience. High-quality nameplate epoxy resin bonds tightly to substrate materials like vinyl, aluminum, PET, and metallic foils without shrinking or pulling back.
- Substrate Grip: Creates a permanent bond on smooth or textured decal backing.
- Flexibility & Resilience: Formulated to remain slightly flexible, absorbing impacts without cracking.
- Flawless Finish: Proper mixing ratios prevent curing failure, tacky surfaces, or air entrapment.
Temperature, moisture, and chemical resistance
Domed stickers frequently end up on machinery, vehicles, consumer electronics, and outdoor equipment where harsh conditions are standard.
- Thermal Stability: Retains structural integrity across temperature ranges from -40°C to 90°C.
- Moisture Barrier: Forms a 100% waterproof, non-porous shield that resists humidity and water submersion.
- Chemical Defense: Withstands exposure to household cleaners, alcohol wipes, oils, and mild solvents without clouding.
How to Select the Right nameplate epoxy resin
Selecting the right nameplate epoxy resin ensures your high-gloss dome stickers and brand badges stay crystal clear, flexible, and durable over time. Here is how we help you choose the ideal material for your production line.
Recommended formula type
- Solvent-Free Clear Systems: Provides high surface tension for perfect high-dome effects without overflowing edges.
- UV-Stabilized Formulations: Prevents yellowing and keeps optical clarity intact under long-term light exposure.
- Self-Leveling & Auto-Defoaming: Allows trapped air to escape naturally, eliminating micro-bubbles and surface defects.
Mixing ratio and curing conditions
Maintaining precise mixing ratios and clean curing environments prevents curing failure and soft surfaces.
| Parameter | Standard Specification |
|---|---|
| Mix Ratio | 3:1 or 1:1 by weight (formula dependent) |
| Working Time (25°C) | 30 – 45 minutes |
| Cure Schedule | Room temperature: 12–24 hours / Heat cure: 60°C for 2 hours |
| Ideal Environment | Cleanroom setting, humidity under 65% |
Packaging and bulk order options
We offer tailored packaging and supply chains to fit your exact manufacturing volume:
- Sample Testing: Request trial kits to verify viscosity, doming height, and hardness before scaling up.
- Bulk Packaging: Options range from 1 kg sets for trial runs to 5 kg pails and 200 kg steel drums for large automation lines.
- Quality & Compliance: Shipped directly from our Dongguan factory under strict ISO 9001 quality management, complete with full SDS/MSDS documentation for smooth international shipping.
